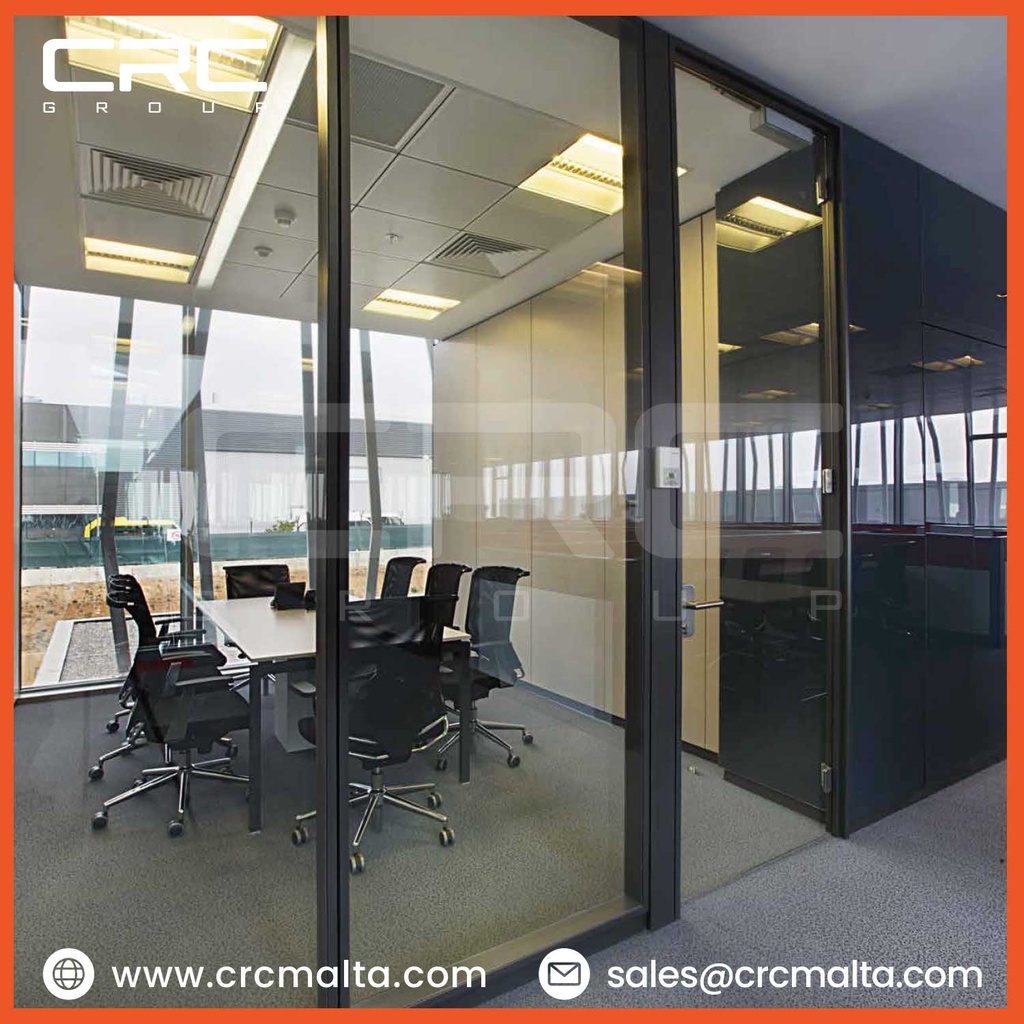

Jointed and Clipsed Wall Partition Systems

Easy assembly and disassembly.
Half mono-block units.
Unlimited horizontal and vertical design opportunities: Solid, fully glazed, top-glazed panels with overhead glazed, etc.
Production options: HPL, veneers, paint, textile, back painted glass, fabric, sound-absorbing elements.

Options: Solid wall, framed glazing (double and single)
Element types: Solid wall, fully glazed, horizontally divided
Surfaces: Solid wall (melamine, veneered, HPL or lacquered)
Glass wall (float glass / toughened safety glass, acoustic laminated glass)
Anodized / powder-coated aluminum glass frame
Wall thickness: 100 mm
Joints: 6 mm - vertical and horisontal
Sound insulation: 34 dB - 48 dB
Accessories: Acoustic absorbers, blinds, accessory systems

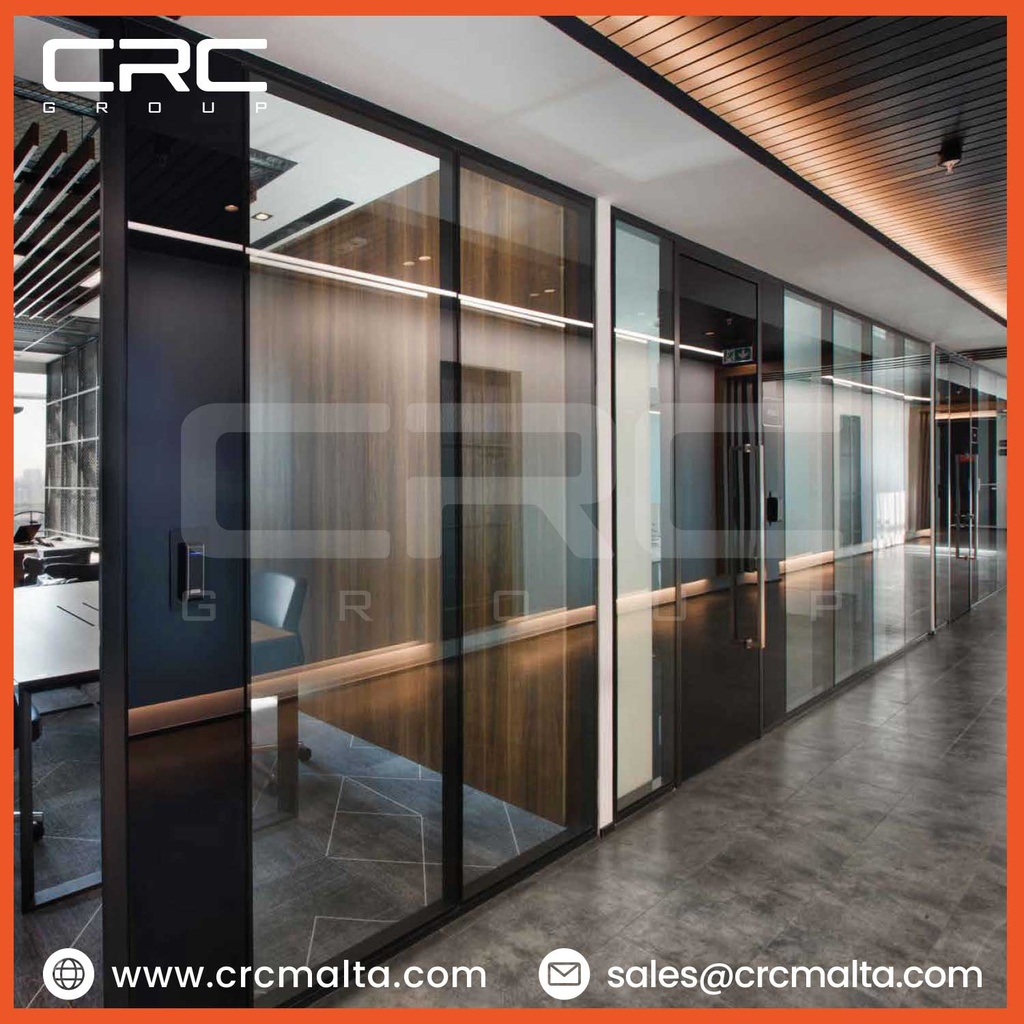

Flush Bonded Double Glazed Partition Systems

Flush to corridors and perspective by bonding the glass to the profiles.
Horizontal and vertical design opportunities: Solid, glazed, and door units.
Back-painted glass to make solid units and door leaves.

Wall thickness: 100 mm
Element types: Flush double-glazed units
Options: Fully glazed, horizontally divided
Joints: 6 mm / horizontal & vertical
Sound insulation: 43 dB
Surfaces: Flush bonded glazing without visible frame made of toughened safety glass or acoustic laminated glass (6 mm – 8 mm)
Bonding: Light grey (black upon request)
Door Units: Flush 66 mm solid / glass doors
Accessories: Blinds / Wall organization units

Flush Bonded Double Glazed Partition Systems

Monoblock system with structural bonded double-glazed panels and doors, providing a continuously flush-fitted surface.

Design: Post-and-beam monoblock wall system, flush glazing system
Finish: Double glazing 6-8 mm toughened glass. 8 mm solid panel
Element types: Fully height units
Surface: RAL 7021 colored construction profiles. E6 EV1 or RAL coated glazed and door profiles
Wall thickness: 66 mm
Bonding: Light grey (black upon request)
Joints: Vertical
Doors: 66 mm door units
Sound Insulation: 37 dB - 47dB

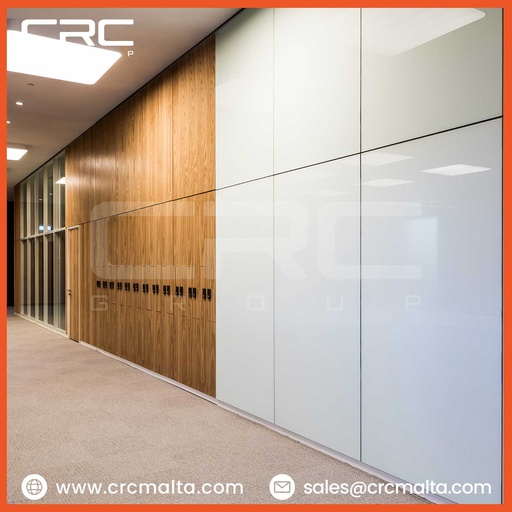

The Wall Cladding system is designed to ensure covering all architectural and technical requirements. Cladding is the ideal solution for critical narrow spaces which has a very limited place for cladding. The system can be mounted to the existing wall with 45 -50 mm thickness. It can be used up to 3500 mm in height. The system needs to be fixed to the existing wall with brackets.

Design: Design with stud
Options: CL – 45 Slim Cladding, CL – 85 Standard Cladding
Thickness: 45 mm (CL – 45) / 85 mm (CL-85)
Surface: Wood panels (melamine, laminate, lacquered, natural wood veneered, acoustical, etc.), back painted glass, compact laminate, fabric panels
Joints: 6 mm – horizontal & vertical

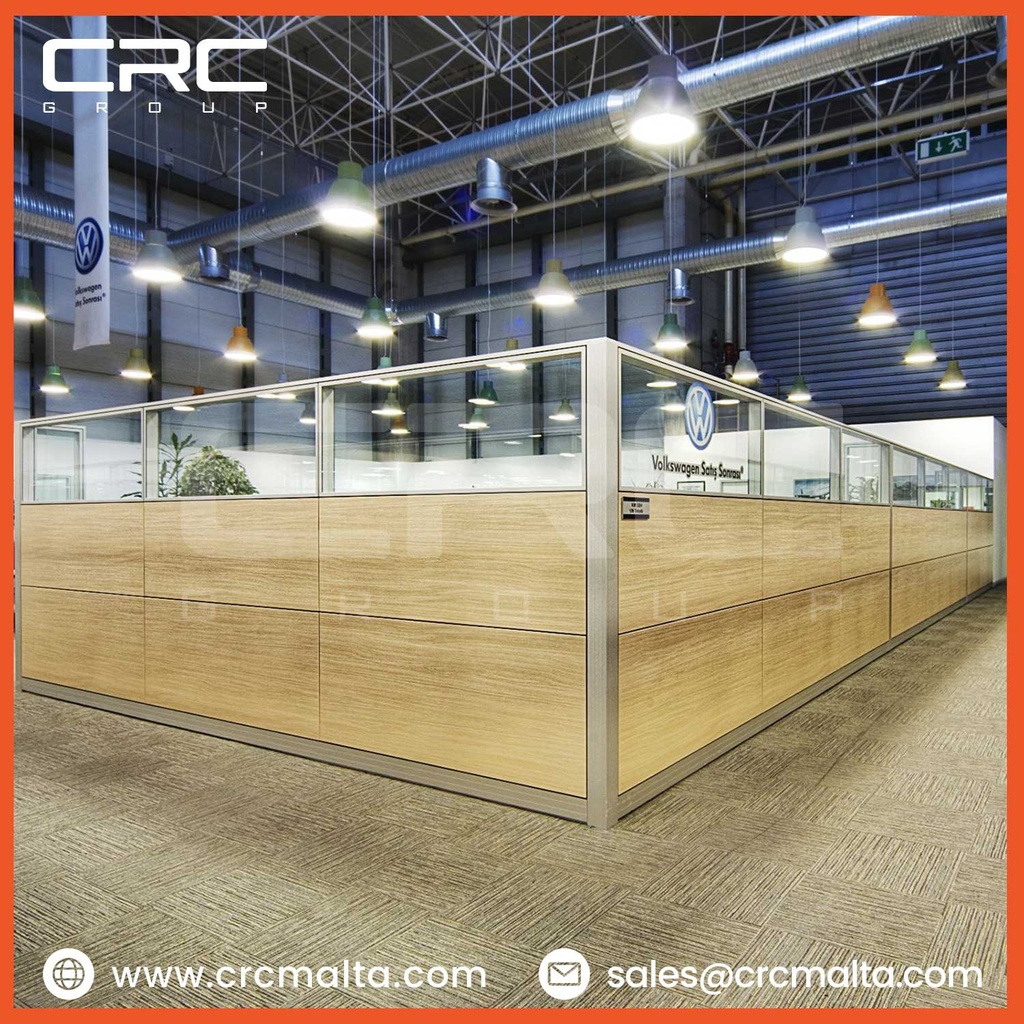

Wall Separator System which enables the decorative and functional personalized areas, offers the possibility of evaluation in a different area with the advantages of easy assembly and disassembly. The system has almost limitless design criteria with the help of endless choices of panel and glass units which can be easily integrated into each other.

Snap separator, which does not need any fixing to the ceiling, provides flexibility to the designers to create the most suitable solutions for projects.

Design: Design with Stud
Wall Thickness: 100 mm
Element Types: Solid Wall / semi-monobloc double – single glazed units – full height or horizontally divided
Joints: 6 mm – horizontal and vertical
Surfaces: Anodized / powder-coated aluminum glass frame
Solid units (melamine, veneered, HPL or lacquered)
Glass units (float glass / toughened safety glass, acoustic laminated glass)

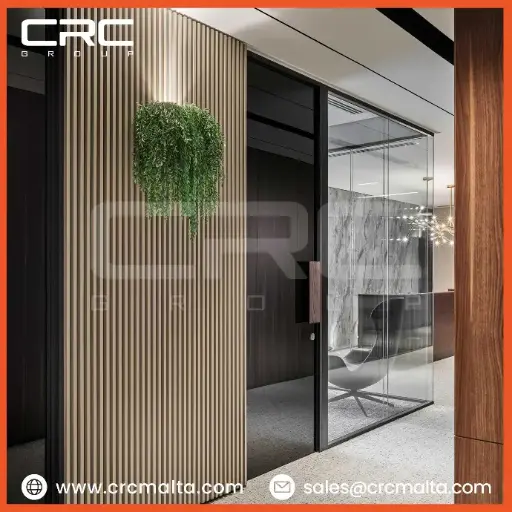

The Frameless Partition System all-glass partition wall combines maximum transparency with high cost-effectiveness. Its basis is formed by a variable aluminum floor and ceiling profile, which can support several different types of glazing. The glazed profiles are easy to install and allow for building tolerances. You can choose from several different sliding and hinged door elements made of glass or wood, with either aluminum or wooden block frames.

Design: All-glass construction
Construction: Single-glazed 10-24 mm toughened safety glass / acoustic laminated glass Element types: All-glass, ceiling-high
Surfaces: Aluminium profiles in E6 EV1 or powder-coated
Wall thickness: 40 – 50 mm
Glass joint: Adhesive strip seals
Sound insulation: Up to 41 dB
Doors: All-glass doors, aluminium-frame doors, solid doors, sliding doors
Accessories: Absorption elements (fitted as a shell in front of the glass)

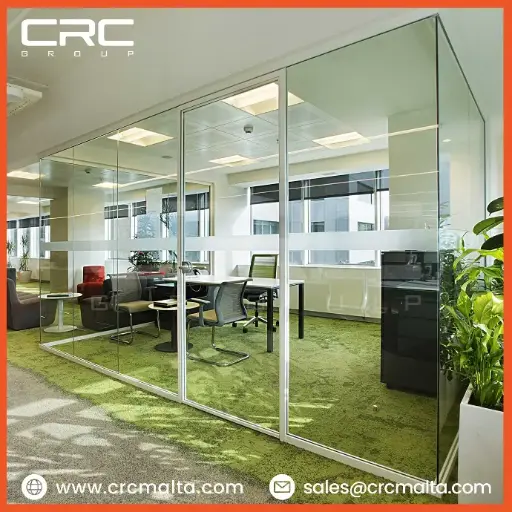

Frameless glazed wall partition systems is a clipsed and framed partition system, it is the frameless version of Snap. Without studs and vertical aluminium frame, double glazed wall system creates an open space design with higher sound protection requirements. The system provides maximum transparency by utilizing minimal glass connections and a stud-free construction. As a part of snap, the system can be fully integrated with all other versions. Door elements are avaible in different variations such as flush solid doors and flush bonded doors.

Design: All glass construction
Options: 2 x 10 mm / 2 x 12 mm toughened or laminated glass
Element types: Fully glazed
Surfaces: Aluminium profiles in E6 EV1 or powder-cated
Wall thickness: 100 mm
Glass Joint: Adhesive strip seals
Sound insulation: 42 dB - 51 dB
Accessories: Acoustic absorbers, blinds

Vertical Frameless Glazed Partition System

Design: Vertical Frameless glazing system
Finish: Single or Double glazing 8-10-12 mm toughened
glass. 8 mm solid panel
Element types: Fully height units
Surface: RAL 7021 colored construction profiles. E6 EV1 or RAL coated glazed and door profiles
Wall thickness: 66 mm
Joints: Black Joints: Vertical
Doors: 66 mm door units Bonded or Framed Glazed or Solid all kinds of Wood Material
Accesories: Venetian Blinds
Hinges: Stainless Steel

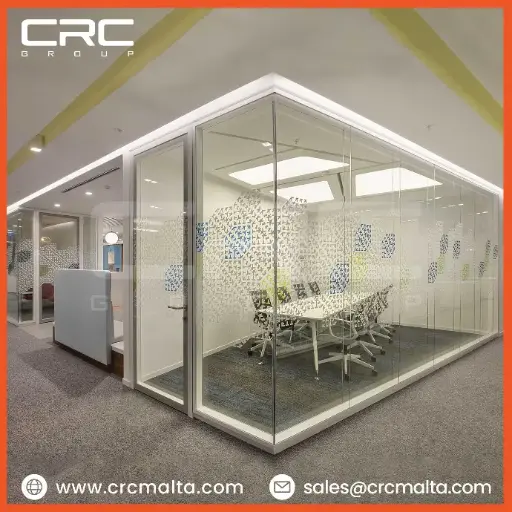

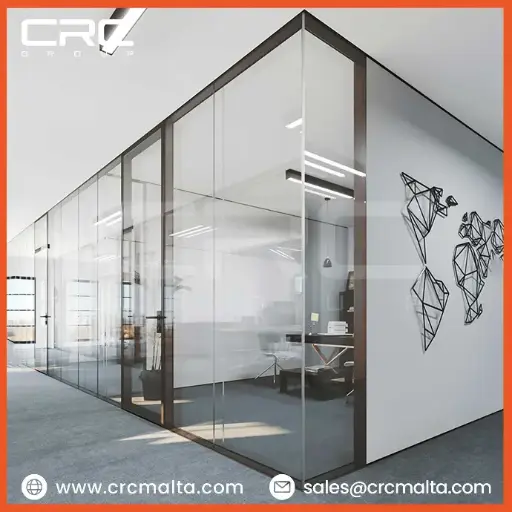

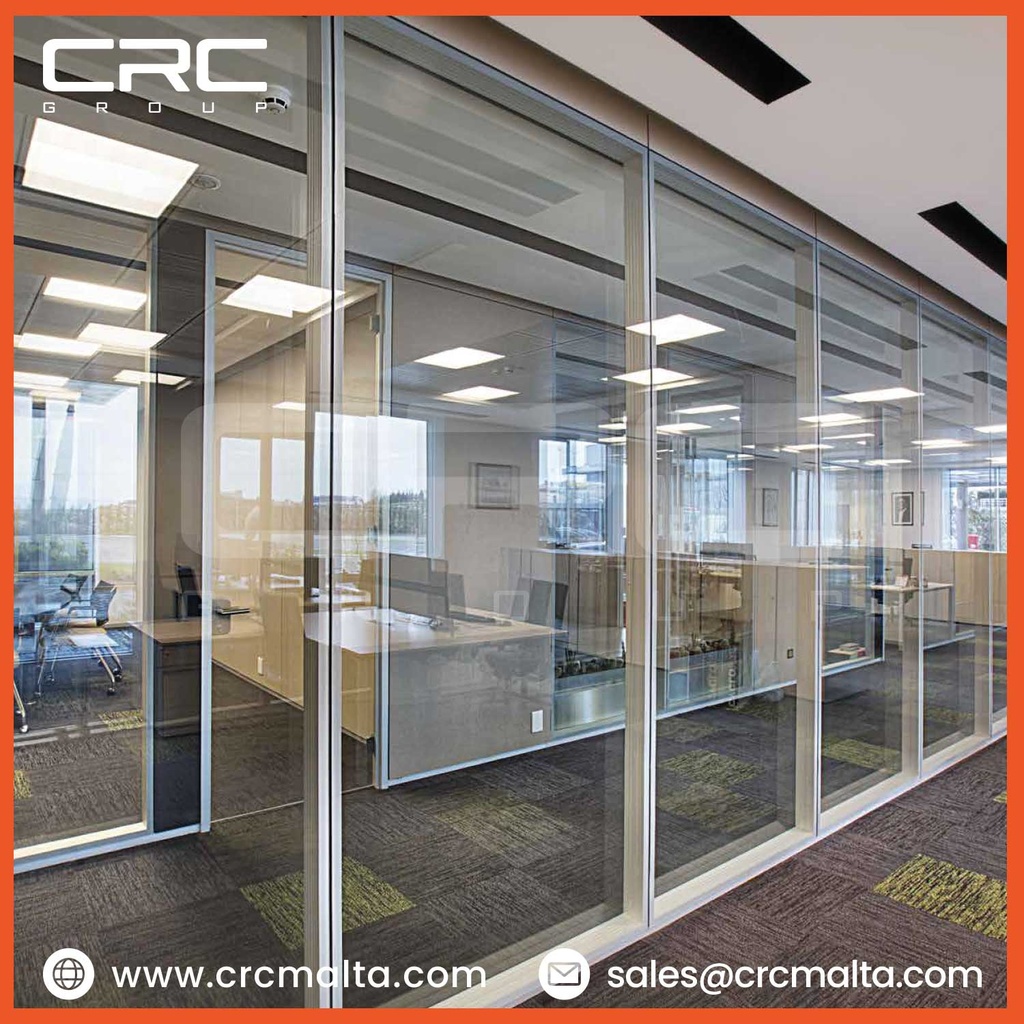

Snap Frameless-Recessed Double Glazed Wall Partition Systems Frameless-Recessed is a clipsed and framed partition system, it is the frameless-recessed version of Snap. Without studs and vertical aluminium frame, double glazed wall system creates an open space design with higher sound protection requirements. The system provides maximum transparency by utilizing minimal glass connections and a stud-free construction. As a part of snap, the system can be fully integrated with all other versions. Door elements are avaible in different variations such as flush solid doors and flush bonded double glazed doors.

Design: Full glass construction.
Options: 2 x 10 mm / 2 x 1 2 mm / 2x 5+5mm toughened or laminated glass.
Element types: Fully glazed.
Surfaces: Aluminium profiles in E6 EV1 or RAL painted.
Wall thickness: 100 mm.
Glass Joint: Adhesive strip seals.
Sound insulation: Up to 48 dB.
Accessories: Acoustic absorbers, automatic blinds Door closer, drop down seal.

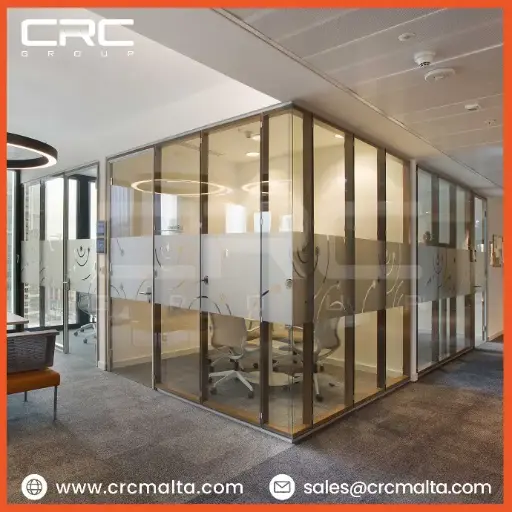

Wooden glazed wall system The partition wall W-System with its wooden beam and post design creates a warm atmosphere within the room. The clean and minimalist design creates its visual effect from the relationship between wooden surfaces and flush glazing. The system offers a friendly and intelligent alternative to steel and aluminium structures. W-System is a relocatable partition wall system of beam and post design with a substructure of veneered plywood posts. The glass surfaces are fitted flush to the surface of the substructure using brushed stainless steel fixings. Timber as carbon-neutral material emphasises a sustainable architecture.

Design: Post-and-beam wall system, flush glazing system
Finish: Double glazing 6-8 mm toughened safety / laminated glass
Element types: Fully height units Surface: Veneered posts
Wall thickness: 100 mm
Section dimensions glass wall: 35 mm
Sound insulation: up to Rwp 44 dB
Doors: Hinge door with timber or aluminium door frames sliding doors (ceiling controlled)

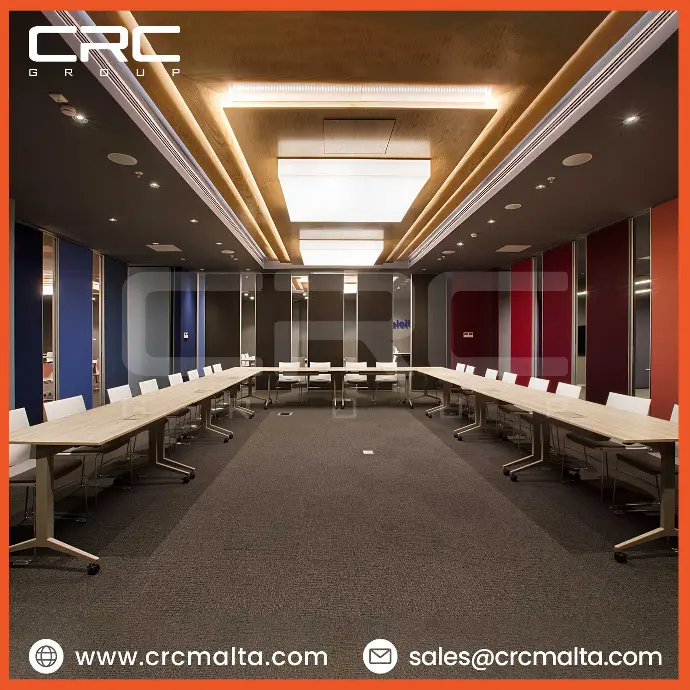

A movable wall partition system provides freedom for space design and usage. MW system with high technical values ensures panels hanging from the ceiling with a hidden rail element supply a high rate of sound insulation. Operating systems can be easily and practically directed. At this moment a huge space can be transformed into small spaces in a short time. Solid surface elements vary such as melamine, fabric, laminate, and veneered. Door elements are also placed within a movable panel.

Design: Movable solid elements
Finish: Melamine, laminate, veneered, fabric
Track: Aluminium track - RAL 9010 colored
Operation: Manuel
Wall thickness: 100 mm
Construction: Aluminium construction profile resisted to bending
Sound insulation: 42 dB - 48 dB - 53dB
Doors: Door within panel

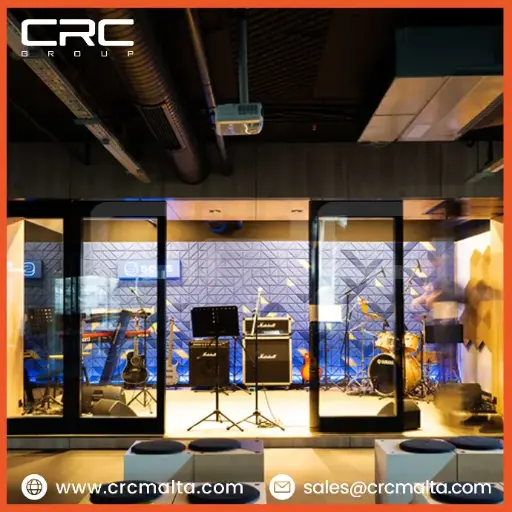

As a movable wall glass partition system provides freedom for space design and usage. Movable Wall Glass System with high technical values which ensures panels hanging from the ceiling with a hidden rail element supplies high rate of sound insulation. Operating system can be easily and practically directed. Hereby a huge space can be transformed into small spaces in a short time.


Design: Movable glass elements
Finish: Melamine, laminate, veneered, fabric
Track: Aluminium track - RAL 9010 colored
Operation: Manuel
Wall thickness: 100 mm
Construction: Aluminium construction profile resisted to bending
Sound insulation: 41 dB

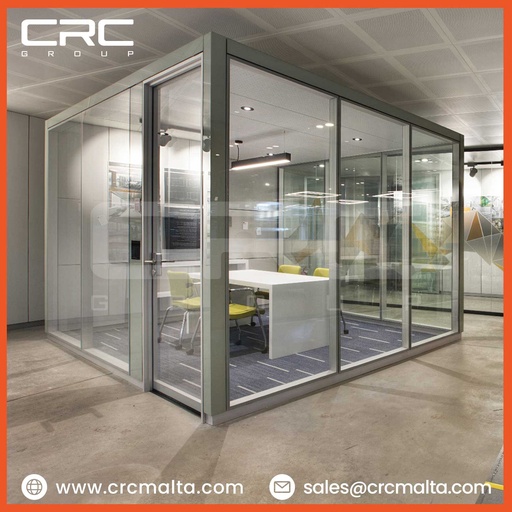

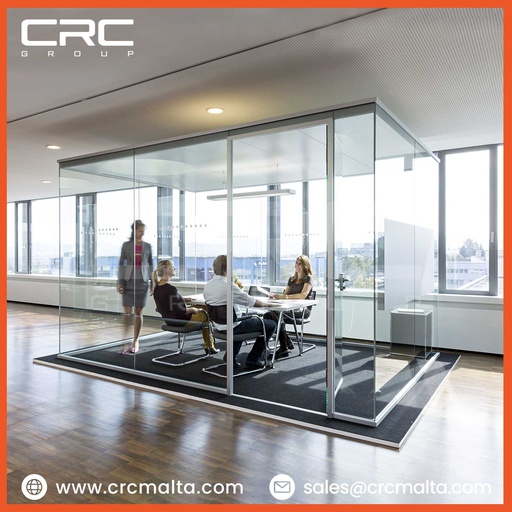

Room-in-Room System is a single glazed room in room solutions for modern office concepts. The system enrich modern, open office concepts with high-grade retreat areas. As it can be freely positioned in rooms and enables efficient use of space. The cube can be flexibly configured, is highly soundproofed and has extremely functional equipment. The all-glass cube provides confidentiality in large open-plan offices without impairing their transparency and their open character. The elegant aluminium structure of Kubus I with its all-glass, externally-flush design fits smoothly into the existing architecture.


Design: Fully glazed cube with aluminium supporting structure and single glazing
Dimensions:
Lenghts: 2.706 / 3.956 / 5.206 mm
Width: 2.774 mm
Height: 2.500 mm
Glazing: 10 mm toughened glass / 16 mm laminated glass
Sound insulation: 10 mm
toughened glass: Dn,T,w = 28 dB (equivalent to R’w of approx. 34 dB) 16 mm
laminated glass: Dn,T,w = 32 dB (equivalent to R’w of approx. 39 dB)
Stability: Internal, statically approved support design
Multifunctional wall: Integrated absorber element and panel for securing screens
Ventilation: Integrated combined ventilation and air extraction device, output of up to 210 m3/h

As a Boxline movable wall glass partition system provides freedom for space design and usage. A Movable Wall Glass System with high technical values ensures panels hanging from the ceiling with a hidden rail element supply a high rate of sound insulation. Operating systems can be easily and practically directed. At this moment a huge space can be transformed into small spaces in a short time.


Design: Movable Glass Partition
Finish: Melamine, laminate, veneered, fabric
Track: Aluminium track - RAL 9010 colored
Operation: Manuel
Wall thickness: 100 mm
Construction: Aluminium construction profile resisted bending
Sound insulation: 41 dB

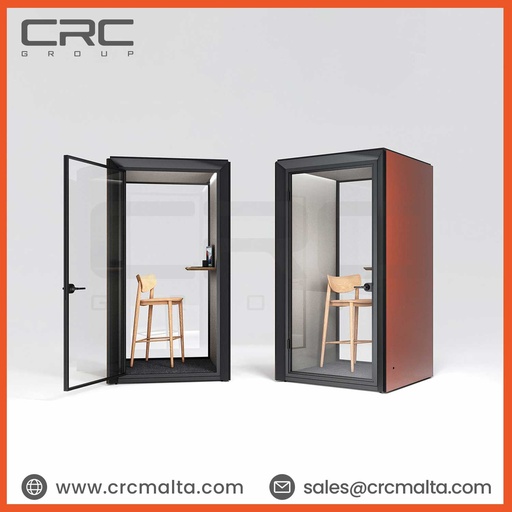

Small Acoustic POD Rooms are designed as a one-person workspace for private phone calls and highly concentrated work. It minimizes reflection and reverberation thanks to the sound-absorbing panels on interior walls and ceilings. It guarantees efficient use of space in modern open-plan offices with an area of approximately 1.6 m2.

Size: 1252 x 1252 x 2320 mm
Weight: 320 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

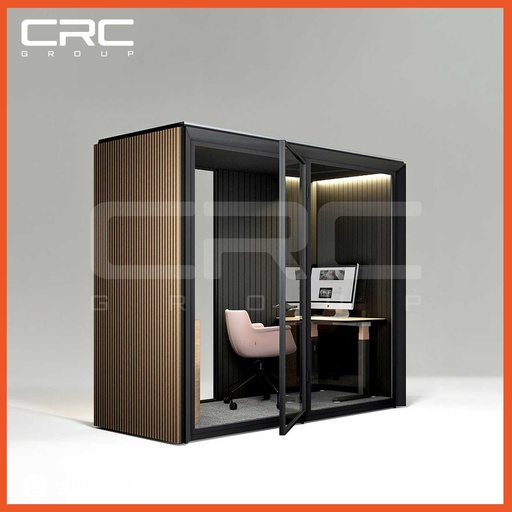

Medium Acoustic POD Rooms, formed by combining two small models, is a comfortable in-room solution. It provides a suitable working environment for employees to hold two-person or online meetings. It offers an elegant and aesthetic appearance thanks to the sound-insulated solid side panels and glass surfaces surrounded by the aluminum construction. It minimizes the annoying sound level up to 32 dB. Suitable for one or two people.

Size: 1252 x 2452 x 2320 mm
Weight: 640 kg
Ventilation: 19 dB, 180 m3/h
Solid Module: 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

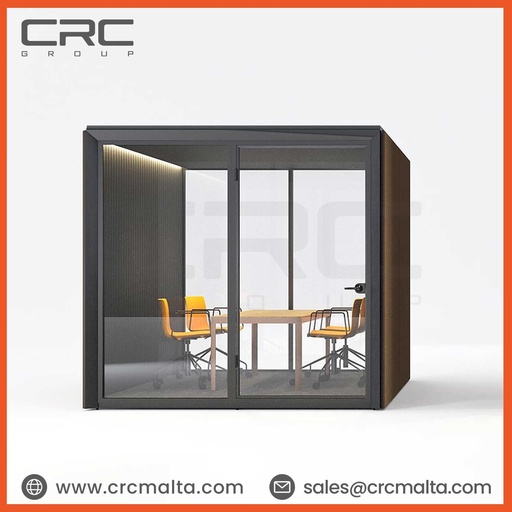

Large Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for the teamwork of four people.

Size: 2452 x 2452 x 2320 mm
Weight: 1280 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

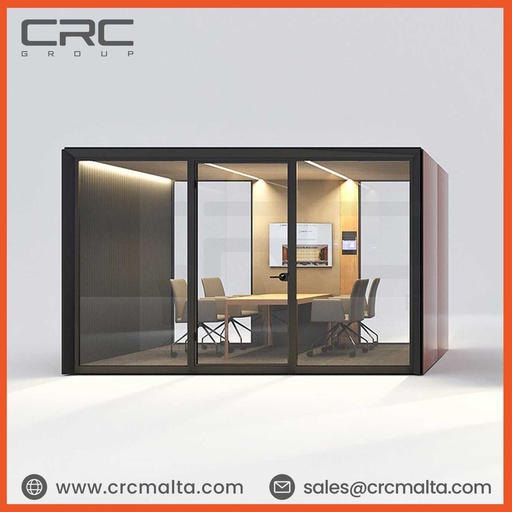

XL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 2452 x 3652 x 2320 mm
Weight : 1920 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

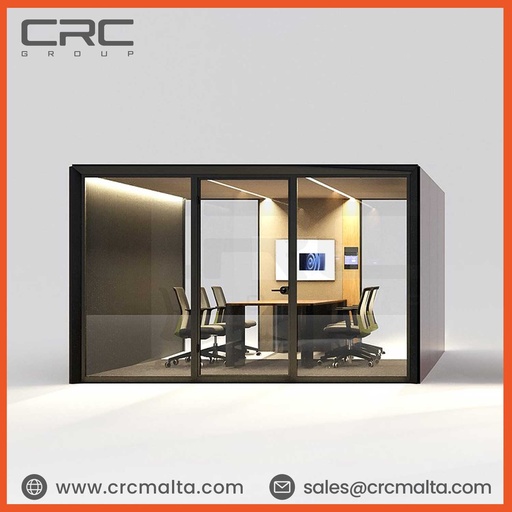

XXL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 3652 x 3652 x 2320 mm
Weight : 2880 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density, R’w = 30 dB

Upgrade your space with our top rate single Glass Partition, designed for each residential and business interiors in Malta. Perfect for offices, retail spaces, and homes, this elegant glass divider enhances natural light flow while creating a modern, open atmosphere.

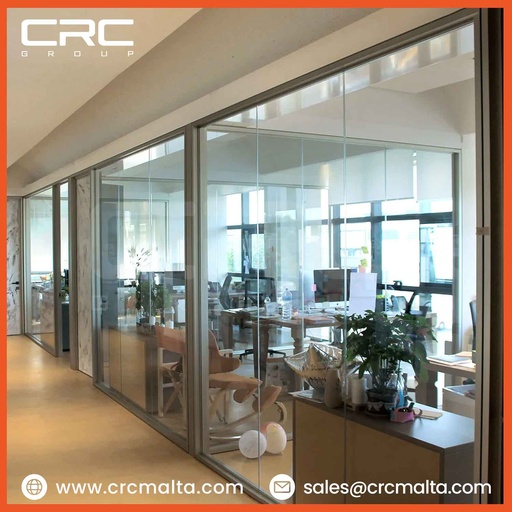

Elevate your space with our modern Square-Profile Glass Partitions, designed to bring sophistication and functionality to any interior in Malta. These partitions feature sleek, square-profile frames that offer a contemporary aesthetic, perfect for offices, retail spaces, and homes. Crafted with high-quality glass, they maximize natural light while providing a sense of open space.

Transform your space with the sleek and stylish Double Glass Partition. Perfect for both residential and commercial settings in Malta, this partition offers a modern touch while maximizing natural light flow. Whether you're looking to create private areas in open-plan homes or establish clear boundaries in office spaces, our Double Glass Partition is the ideal solution.

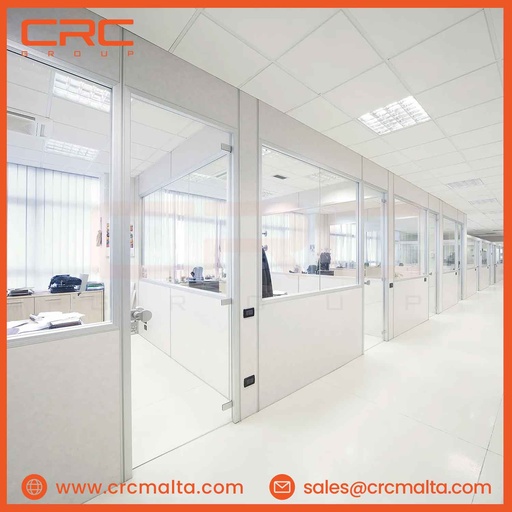

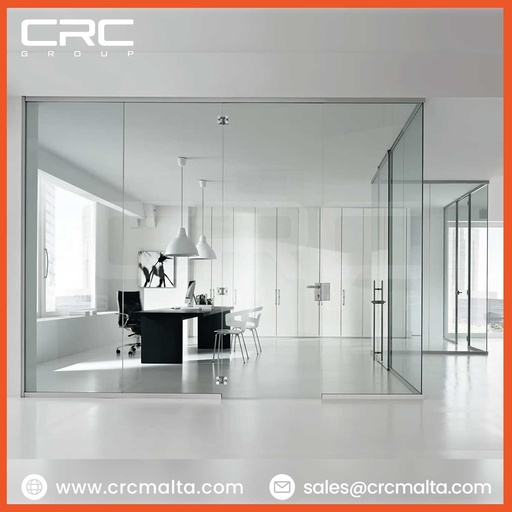

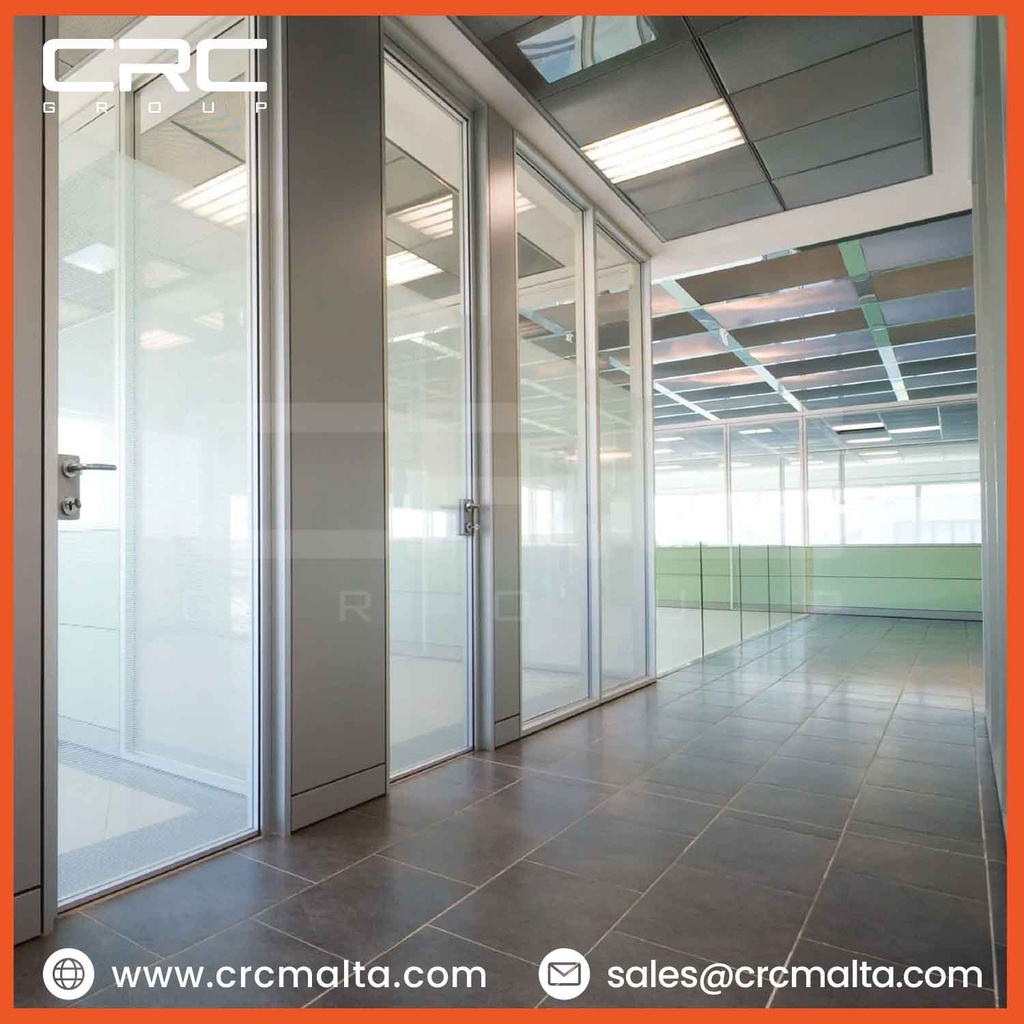

Elevate your interior design with our Single Glass Partition, the perfect solution for both residential and commercial spaces in Malta. Designed to create a modern, open look while offering privacy and style, this partition is ideal for transforming any space into a sophisticated environment.

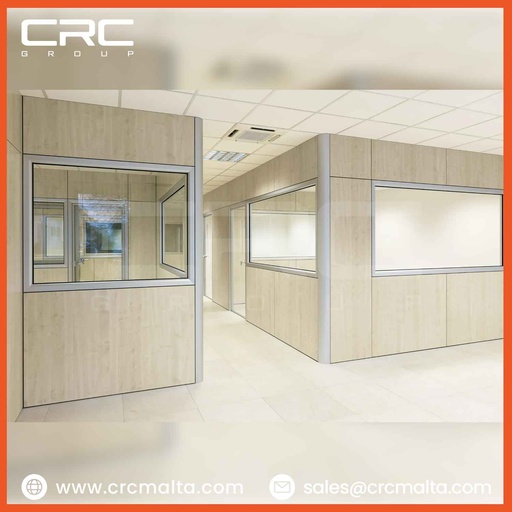

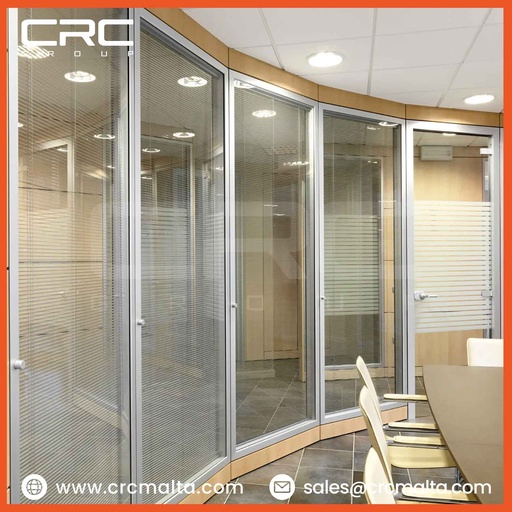

Transform your office, home, or commercial space in Malta with our elegant and functional Convex Single Glass Partition. This modern partition solution offers a unique curved design, adding a touch of sophistication and enhancing the flow of natural light throughout your environment.

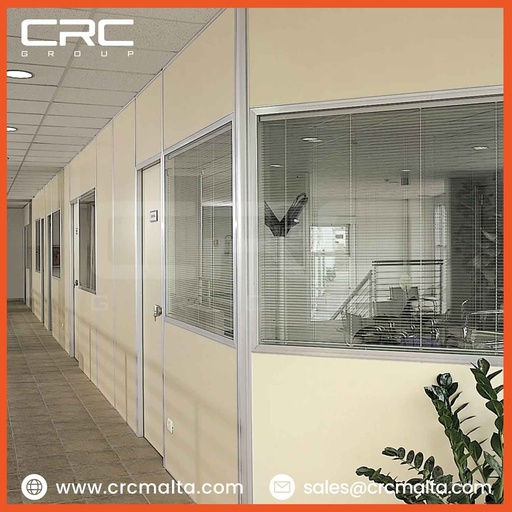

Enhance your Maltese workspace with our premium Double Glass Modular Partitions, designed to combine modern aesthetics with superior functionality. These partitions feature a sleek, double-glazed design that not only elevates the visual appeal of your office but also offers exceptional sound insulation, ensuring a quiet and productive environment.

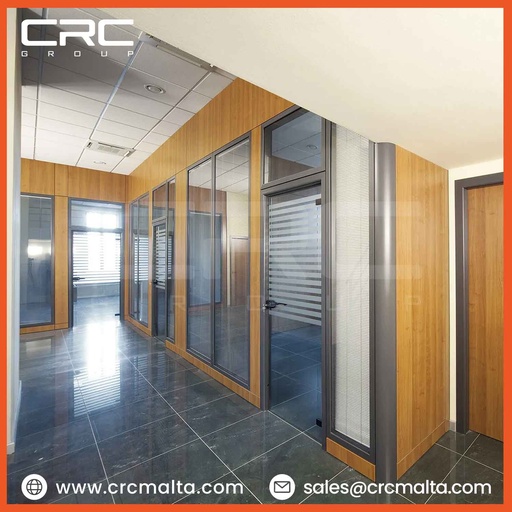

Enhance your workspace with our high-quality modular office partition designed for modern offices in Malta. Featuring a double glass panel system, this partition ensures maximum transparency, durability, and soundproofing while maintaining an elegant and professional look.
