Lined and flat surface-type options.
Prepainted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,27 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR insulation alternatives.
ISO, TSE, and CE quality certificates.

Lined and flat surface type options.
Prepainted galvanized steel, stainless steel or PVC film laminated inner and outer sheet alternatives.
Fire performance according to TS EN 13501-1, B-s2; d0 for PUR insulated cold storage panels, B-s1; d0 for PIR insulated cold storage panels.
Production flexibility at any ordered length between 2m & 12m.
Core thickness options 80-100-120-150-180-200 mm.
According to TS EN 14509, U values range between 0,27 – 0,11 W/m2K depending on the panel thickness.
PUR and PIR* insulation alternatives.
ISO, TSE, CE quality certificates and FM Approval Certificates.

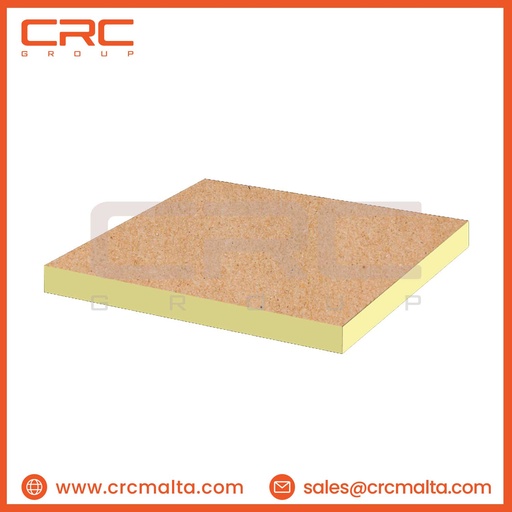

• Natural Kraft Paper on the upper and lower surfaces.
• Fire performance according to TS EN 13501-1, B for PUR and PIR insulation board.
• Production flexibility at width 1 m, and any ordered length between 1 m - 3 m.
• Thickness options 50-60-80-100 mm • Compressive strength is 0,095 MPa, according to TS EN 826.
• Usage in roof, wall and floor insulation applications that require high compressive strength.
• Density PUR 38 kg/m3 (+/-2), PIR 40 kg/m3 (+/-2).
• Production at Sakarya factory.

Outer Face - Inner Face: Painted Galvanized Sheet - Painted Galvanized Sheet And Alternatives
Sheet Thickness: 0,30 - 0,80 mm
Min - Max Height: 2,5 m - 15 m
Intensity: 38-42 kg/m3 PUR, 42-45 kg/m3 PIR
Coefficient of Thermal Conductivity Between 0,49 - 0,11 W/m2K
