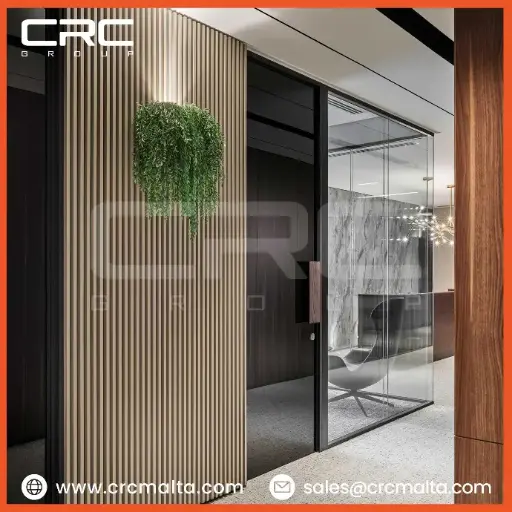

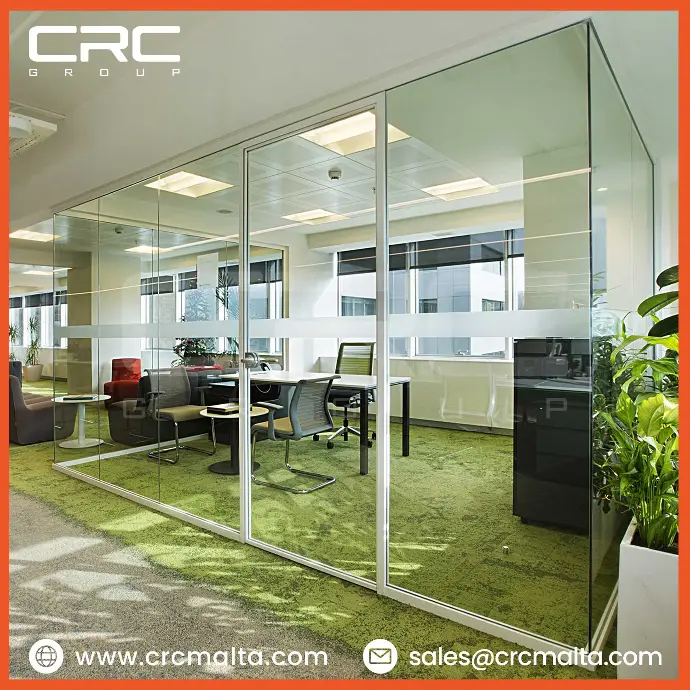

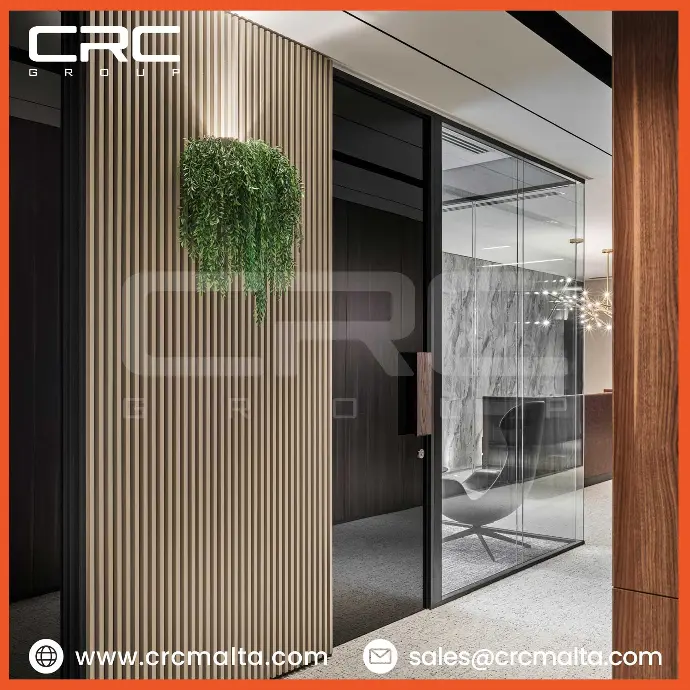

The Frameless Partition System all-glass partition wall combines maximum transparency with high cost-effectiveness. Its basis is formed by a variable aluminum floor and ceiling profile, which can support several different types of glazing. The glazed profiles are easy to install and allow for building tolerances. You can choose from several different sliding and hinged door elements made of glass or wood, with either aluminum or wooden block frames.

Design: All-glass construction
Construction: Single-glazed 10-24 mm toughened safety glass / acoustic laminated glass Element types: All-glass, ceiling-high
Surfaces: Aluminium profiles in E6 EV1 or powder-coated
Wall thickness: 40 – 50 mm
Glass joint: Adhesive strip seals
Sound insulation: Up to 41 dB
Doors: All-glass doors, aluminium-frame doors, solid doors, sliding doors
Accessories: Absorption elements (fitted as a shell in front of the glass)

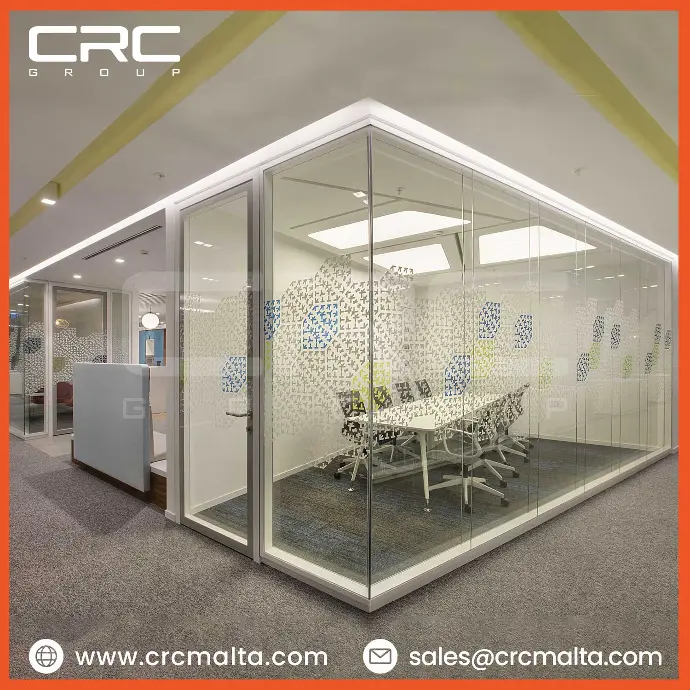

Frameless glazed wall partition systems is a clipsed and framed partition system, it is the frameless version of Snap. Without studs and vertical aluminium frame, double glazed wall system creates an open space design with higher sound protection requirements. The system provides maximum transparency by utilizing minimal glass connections and a stud-free construction. As a part of snap, the system can be fully integrated with all other versions. Door elements are avaible in different variations such as flush solid doors and flush bonded doors.

Design: All glass construction
Options: 2 x 10 mm / 2 x 12 mm toughened or laminated glass
Element types: Fully glazed
Surfaces: Aluminium profiles in E6 EV1 or powder-cated
Wall thickness: 100 mm
Glass Joint: Adhesive strip seals
Sound insulation: 42 dB - 51 dB
Accessories: Acoustic absorbers, blinds

Vertical Frameless Glazed Partition System

Design: Vertical Frameless glazing system
Finish: Single or Double glazing 8-10-12 mm toughened
glass. 8 mm solid panel
Element types: Fully height units
Surface: RAL 7021 colored construction profiles. E6 EV1 or RAL coated glazed and door profiles
Wall thickness: 66 mm
Joints: Black Joints: Vertical
Doors: 66 mm door units Bonded or Framed Glazed or Solid all kinds of Wood Material
Accesories: Venetian Blinds
Hinges: Stainless Steel

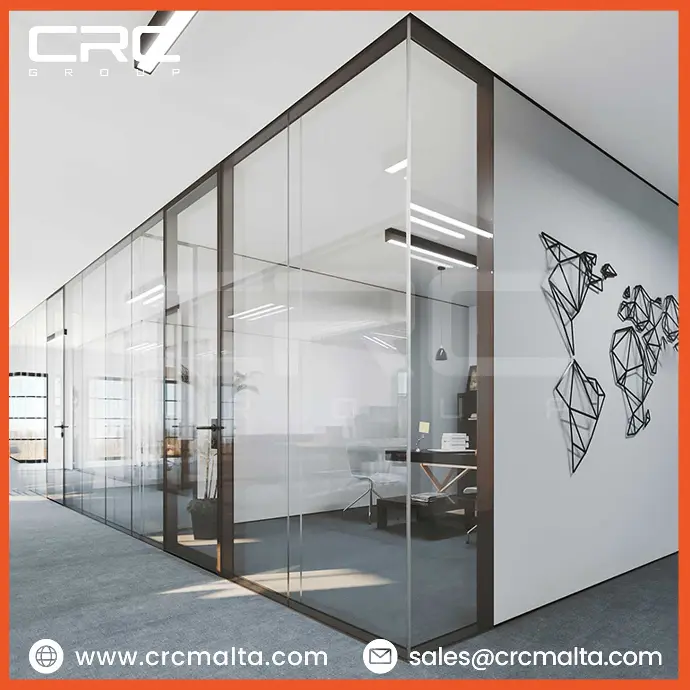

Snap Frameless-Recessed Double Glazed Wall Partition Systems Frameless-Recessed is a clipsed and framed partition system, it is the frameless-recessed version of Snap. Without studs and vertical aluminium frame, double glazed wall system creates an open space design with higher sound protection requirements. The system provides maximum transparency by utilizing minimal glass connections and a stud-free construction. As a part of snap, the system can be fully integrated with all other versions. Door elements are avaible in different variations such as flush solid doors and flush bonded double glazed doors.

Design: Full glass construction.
Options: 2 x 10 mm / 2 x 1 2 mm / 2x 5+5mm toughened or laminated glass.
Element types: Fully glazed.
Surfaces: Aluminium profiles in E6 EV1 or RAL painted.
Wall thickness: 100 mm.
Glass Joint: Adhesive strip seals.
Sound insulation: Up to 48 dB.
Accessories: Acoustic absorbers, automatic blinds Door closer, drop down seal.
