Room-in-Room System is a single glazed room in room solutions for modern office concepts. The system enrich modern, open office concepts with high-grade retreat areas. As it can be freely positioned in rooms and enables efficient use of space. The cube can be flexibly configured, is highly soundproofed and has extremely functional equipment. The all-glass cube provides confidentiality in large open-plan offices without impairing their transparency and their open character. The elegant aluminium structure of Kubus I with its all-glass, externally-flush design fits smoothly into the existing architecture.


Design: Fully glazed cube with aluminium supporting structure and single glazing
Dimensions:
Lenghts: 2.706 / 3.956 / 5.206 mm
Width: 2.774 mm
Height: 2.500 mm
Glazing: 10 mm toughened glass / 16 mm laminated glass
Sound insulation: 10 mm
toughened glass: Dn,T,w = 28 dB (equivalent to R’w of approx. 34 dB) 16 mm
laminated glass: Dn,T,w = 32 dB (equivalent to R’w of approx. 39 dB)
Stability: Internal, statically approved support design
Multifunctional wall: Integrated absorber element and panel for securing screens
Ventilation: Integrated combined ventilation and air extraction device, output of up to 210 m3/h

As a Boxline movable wall glass partition system provides freedom for space design and usage. A Movable Wall Glass System with high technical values ensures panels hanging from the ceiling with a hidden rail element supply a high rate of sound insulation. Operating systems can be easily and practically directed. At this moment a huge space can be transformed into small spaces in a short time.


Design: Movable Glass Partition
Finish: Melamine, laminate, veneered, fabric
Track: Aluminium track - RAL 9010 colored
Operation: Manuel
Wall thickness: 100 mm
Construction: Aluminium construction profile resisted bending
Sound insulation: 41 dB

Small Acoustic POD Rooms are designed as a one-person workspace for private phone calls and highly concentrated work. It minimizes reflection and reverberation thanks to the sound-absorbing panels on interior walls and ceilings. It guarantees efficient use of space in modern open-plan offices with an area of approximately 1.6 m2.

Size: 1252 x 1252 x 2320 mm
Weight: 320 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

Medium Acoustic POD Rooms, formed by combining two small models, is a comfortable in-room solution. It provides a suitable working environment for employees to hold two-person or online meetings. It offers an elegant and aesthetic appearance thanks to the sound-insulated solid side panels and glass surfaces surrounded by the aluminum construction. It minimizes the annoying sound level up to 32 dB. Suitable for one or two people.

Size: 1252 x 2452 x 2320 mm
Weight: 640 kg
Ventilation: 19 dB, 180 m3/h
Solid Module: 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

Large Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for the teamwork of four people.

Size: 2452 x 2452 x 2320 mm
Weight: 1280 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

XL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 2452 x 3652 x 2320 mm
Weight : 1920 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density

XXL Acoustic POD Rooms is a high-quality room solution independent of interior spaces. It guarantees privacy thanks to its good sound insulation value for busy work, business deals, and video conferences, and allows a quiet environment to be created with acoustically optimized surfaces. It easily adapts to the office design concept with its optional interior and exterior panel options. It is suitable for teamwork of four and six people.

Size: 3652 x 3652 x 2320 mm
Weight : 2880 kg
Ventilation: 19 dB, 180 m3/h
Solid Module : 100 mm
Glass Units: 6 mm Tempered Glass
Structure: Aluminum Extruded Profiles
Sound Isolation: Rock Wool Panel - 50 mm - 5,76 m² - 50 density, R’w = 30 dB

5 ribs profiled outer sheet
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Production in various color options.
Usage for sound insulation and acoustic improvement.
Application on roofs with a slope higher than 5%.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Roof Panels.
Production flexibility at any ordered length between 2m & 10m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,23 W/m2K depending on the panel thickness.

Lined-type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel.
Both vertical and horizontal cladding.
External fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness.

Lined type outer sheet.
The outer sheet is prepainted galvanized steel, and the inner sheet is perforated prepainted galvanized steel
Both vertical and horizontal cladding.
Secret fixing joint detail.
Usage for sound insulation and acoustic improvement.
Fire performance according to TS EN 13501-1, A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels.
Production flexibility at any ordered length between 2m & 8m.
Core thickness options 50-60-80-100-120-150 mm.
According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness.

The pod version with its individual desk is perfect for waiting areas and meeting areas, guaranteeing the privacy required for open-plan environments. Flexible workstations, collaboration spaces and intimate niches define the offices of today and tomorrow.

We have added a higher backrest and a rooftop, for even higher isolation. Comes with medium or high panel and delivered with lighting and sockets included.

It transforms into a real workstation with desk, shelves and sockets for an autonomous and protected working space.

Type: Ceiling Acoustic Board
Base material: Polyester Fiber
Color: Color chart or customized
Flame retardant level: Grade B1
Environmental protection Level: Grade E1
Application: Office, Meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Type: Wall Acoustic Panel, Ceiling Acoustic Board
Feature: Eco-Friendly, Fireproof, Moistureproof
Color: Color chart or customized
Thickness: 12mm / 15mm / 18mm
Application: Conference Hall, Lecture Hall, Gymnasium, Meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Size: 2600*520*21mm / 2400*600*21mm or customized size
Weight: About 8.5kgs/M2
Fireproof grade: Grade B1
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space but also absorbs the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Standard Size: Length:1220/2400/2600/3000mm Width:600/1200mm Thickness:5/9/12mm

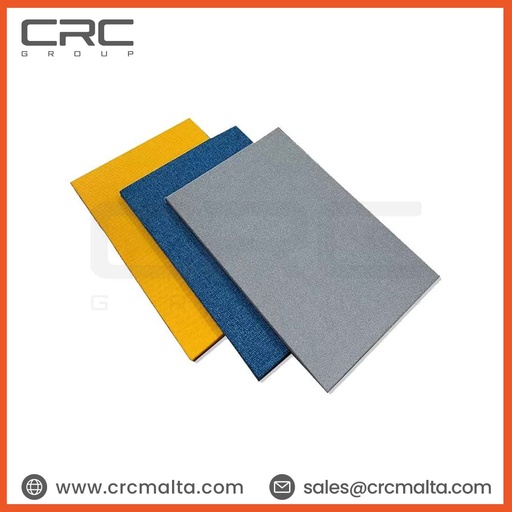

Surface: Fabric
Basic Material: PET/Polyester fiber panel
Density: 120 ~ 300kg / square meter
Acoustics Performance: Noise reduction coefficient NRC ≥ 0.75
Application place: Apartment, villa, Hotel lobby, corridor, room decoration, conference halls, recording rooms, studios, residences, shopping malls, schools, office space etc.

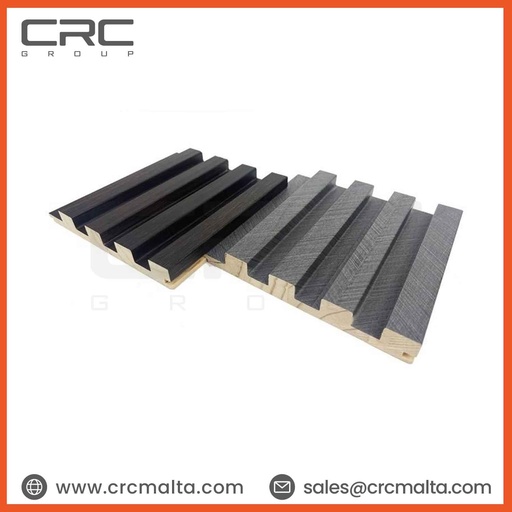

Size: TG-1001(2750*147*17mm); TG-1002(2800*150*17mm)
Weight: About 3kgs/pieces
Material: Pine Wood
Wood surface: PVC
Usage: Wall panel decor, ceiling decor, baseboard Decor, etc.
Application place: Hotel lobby, corridor, room decoration,residences conference halls, recording rooms,studios, schools shopping malls, office space etc.

Type: Wall Acoustic Panel, Ceiling Acoustic Board
Feature: Eco-Friendly, Fireproof, Moistureproof
Color: Color chart or customized
Thickness: 12mm / 15mm / 18mm
Application: Conference Hall, Lecture Hall, Gymnasium, Meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Material: PET Acoustic Panel
Standard Size: 620 mm
Thickness: 9mm
Fire Retardant: Class A from ASTM E84 (US Standard), Class A2 from EN13501 (European Standard)
Application: Office, Cinema, Conference room, Classroom, Auditorium, Gym, Hotel, etc.

Size: 600*600*18mm or customized size
Weight: About 3.9kgs/M2
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Size: 600*600*18mm or customized size
Weight: About 3.9kgs/M2
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Size: 600*2400/2700/3000*21mm or customized size
Weight: About 8.5kg/M2
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space but also absorbs the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Size: 600*2400/2700/3000*21mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space, but also absorb the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space etc.

Size: 793*650*18mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Installation Type: Very Easy Install with Accessories
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space etc.

Size: 2600*520*21mm / 2400*600*21mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space but also absorbs the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Size: 2600*520*21mm / 2400*600*21mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space but also absorb the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

Type: Wall Acoustic Panel
Base material: Owens corning glass fiber
Color: Color chart or customized
Application: Cinema, Reception Room, Chamber, Classrooms, Conference Hall, Corridor, Office, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

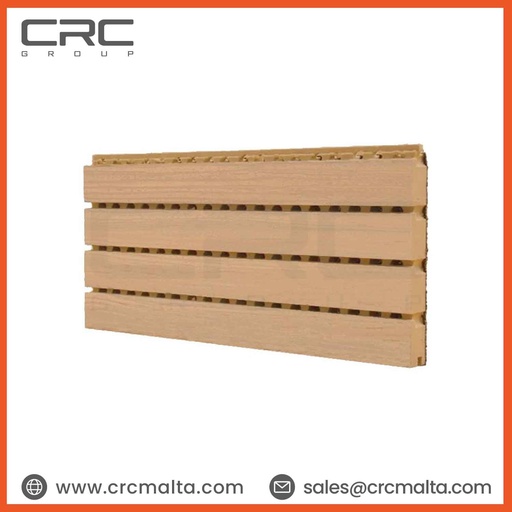

Material: High-quality MDF board
Basic Material: General, Economic, Fireproof, Moisture-proof, Composite, Magnesium, solid wood, etc.
Finish: Melamine, Natural wood veneer, Fireproof board, Painting, Metal, Technology veneer, Leather, etc.
Color: Color chart or customized
Size: 133*2440 mm / 197*2440 mm
Thickness: 12mm / 15mm / 18mm
Application: Studio, Concert Hall, Theater, Piano Room, Assembly Hall, Corridor, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Brand Name: TianGe Acoustic
Type: Wall Acoustic Panel, Ceiling Acoustic Board
Feature: Eco-Friendly, Fireproof, Moistureproof
Color: Color chart or customized
Thickness: 12mm / 15mm / 18mm
Application: Conference Hall, Lecture Hall, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Brand Name: TianGe Acoustic
Type: Wall Acoustic Panel, Ceiling Acoustic Board
Feature: Eco-Friendly, Fireproof, Moistureproof
Color: Color chart or customized
Thickness: 12mm / 15mm / 18mm
Application: Conference Hall, Lecture Hall, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Size: 300/600*2400/2700/3000*21mm or customized size
Weight: About 8.5kg/M2
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space but also absorbs the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space, etc.

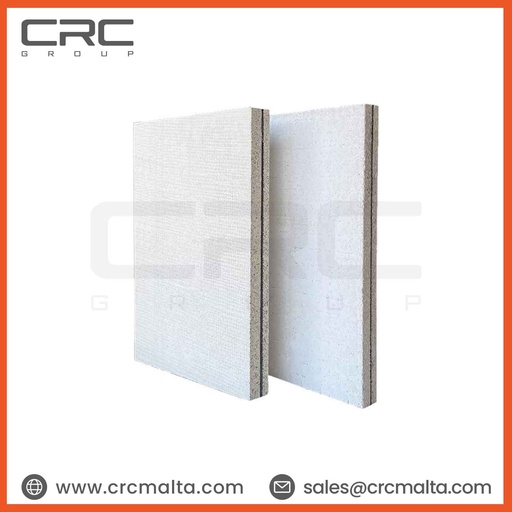

Product name: Acoustic Insulation Sound Board
Specification: 1220*2440*16mm / 1220*2440*18mm
Application place: KTV, Nightclub and any other places with high acoustic requirement.

Size: 2400*600*15mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Craft: With wood grain deco strip, fixed with acoustic fiber panel. Not only decor the space, but also absorb the echo!
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space etc.

Size: 793*650*18mm / 693*600*18mm or customized size
Material: Polyester fiber acoustic panel +E0, E1 grade MDF wood slat/ solid wood
Wood surface: Any wood veneer / HPL board/ any melamine color
Application place: Music Hall, meeting room, Hotel lobby, corridor, room decoration, residences, conference halls, recording rooms, studios, schools, shopping malls, office space etc.

Brand Name: TianGe
Type: Wall Acoustic Panel
Base material: Owens corning glass fiber
Color: Color chart or customized
Application: Cinema, Reception Room, Chamber, Classrooms, Conference Hall, Corridor, Office, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

Material: High-quality MDF board
Basic Material: General, Economic, Fireproof, Moisture-proof, Composite, Magnesium, solid wood, etc.
Finish: Melamine, Natural Wooden Veneer, Fireproof board, Painting, Metal, Technology veneer, Leather, etc.
Application: Studio, Concert Hall, Theater, Piano Room, Assembly Hall, Corridor, Gymnasium, meeting room, Multi-function hall, Auditorium, Conference room, Banquet hall, etc.

made of tubular pickled steel produced according to EN 10305-5 / 5 norm, mm 25x25x1.5 – mm 30x20x1,5 – mm 15x30x1,5. Coated with electrostatic powder epoxy resins.

Made of tubular pickled steel produced according to EN 10305-5 / 5 norm, mm 25x25x1.5 e mm 30x20x1,5. Equipped with adjustable feet and coated with electrostatic powder epoxy resins.

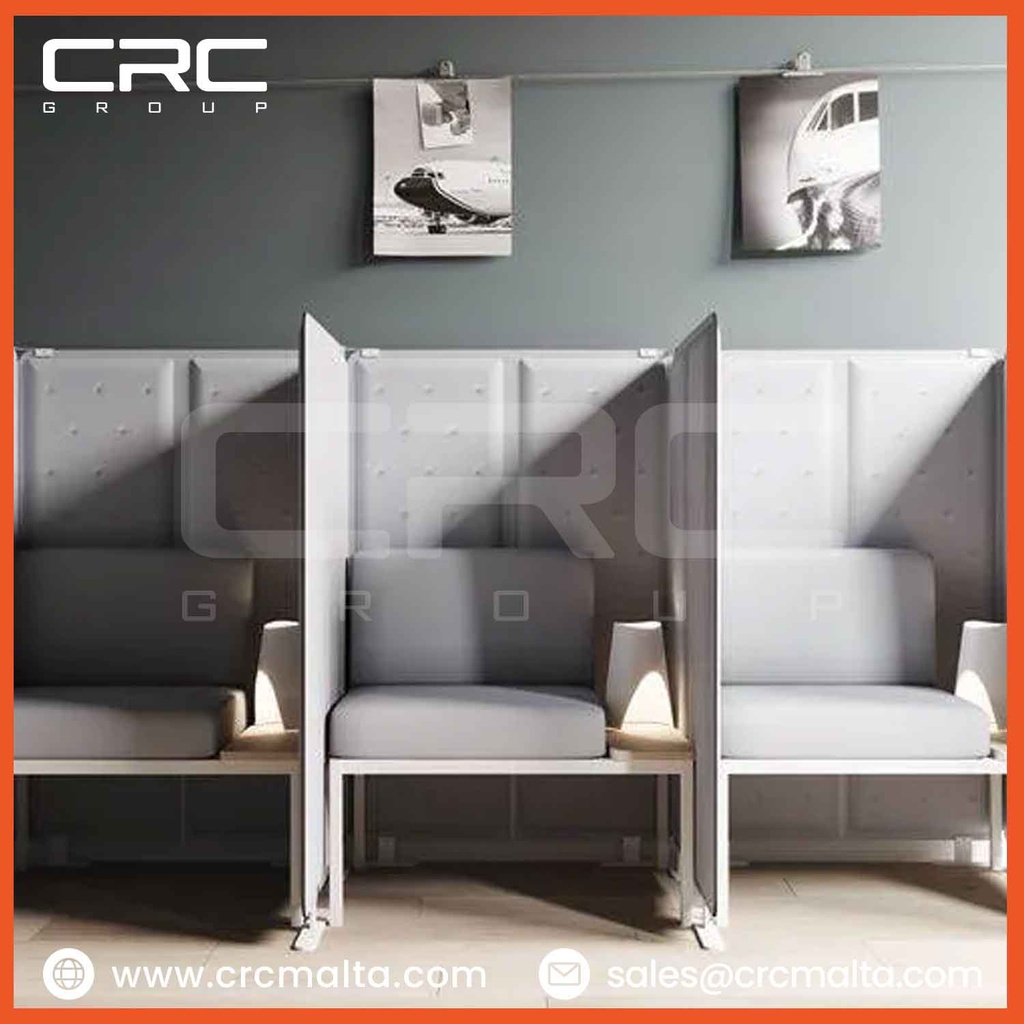

​A series of sofas at 1/2/3 seaters and benches that are easy to assemble, and with flexible modularity. Tables with and without USB sockets to meet the modern needs of charging smartphones and tablets. Fireproof fabric, available in different colors.

Improve your space with our innovative acoustic panels that blend functionality and style seamlessly. These state-of-the-art panels are designed to absorb unwanted noise, creating a serene and focused environment.

The Acoustic Products to be used in different environments such as restaurants, airport lounges, libraries, social clubs, hotel lobbies, and the office environment.
