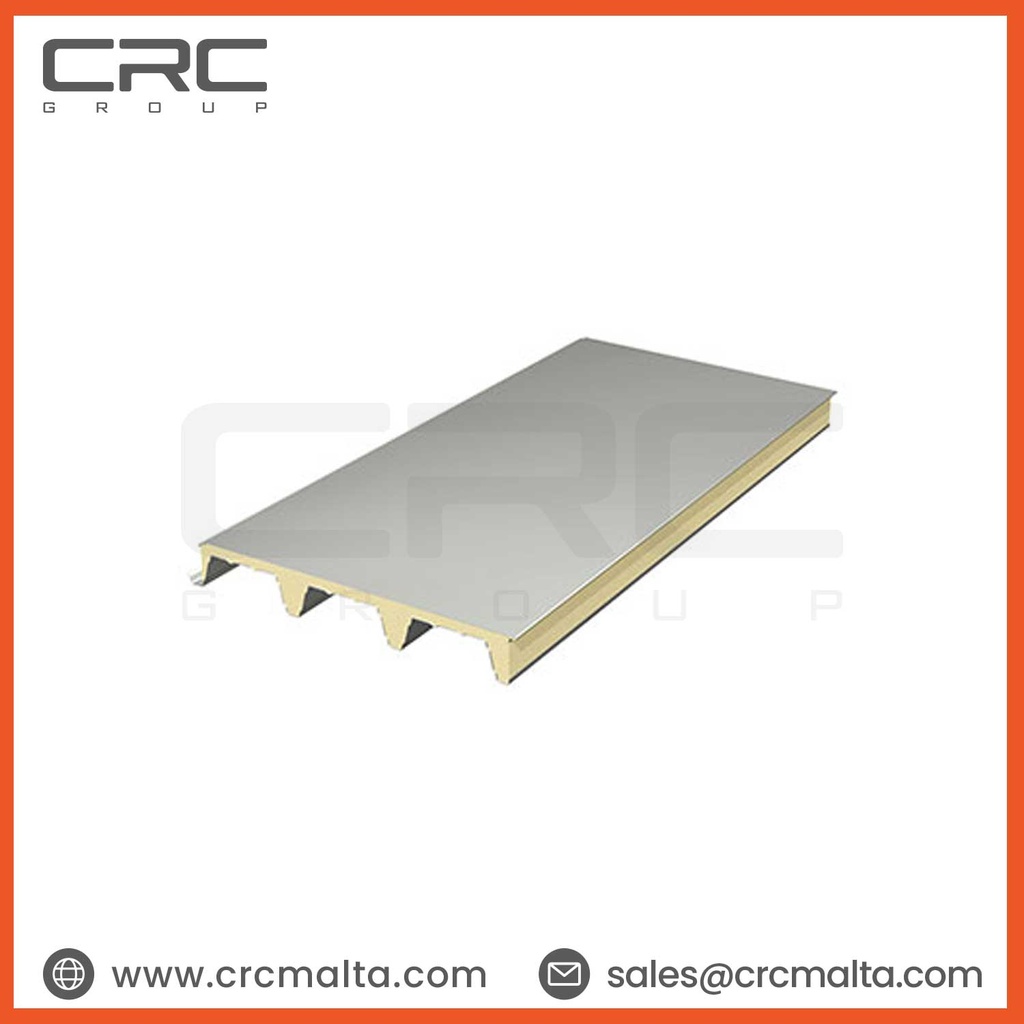

CRC MONO MEGA 106 Flat Roof Panels
Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs.
4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
External side: pvc or polyolefin syntethic membran
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150
Self-supporting roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs.
4 ribs, ribs’ height 106 mm, ribs’ breath 333 mm
External side: pvc or polyolefin syntethic membran
Ribbed internal side: steel support
Working width: 1.000 mm
Thicknesses (mm): 50-60-80-100-120-150
Self-supporting MONO MEGA 106 FLAGON roof panel with polyurethane foam insulation, used for industrial and commercial flat or low slope roofs. The single sheet panel has glued on the flat side a pvc or polyolefin synthetic membrane. In the building site it is necessary make the hot welding between the joint to obtain a waterproofing roof with very well mechanical characteristics and thermal insulations.
