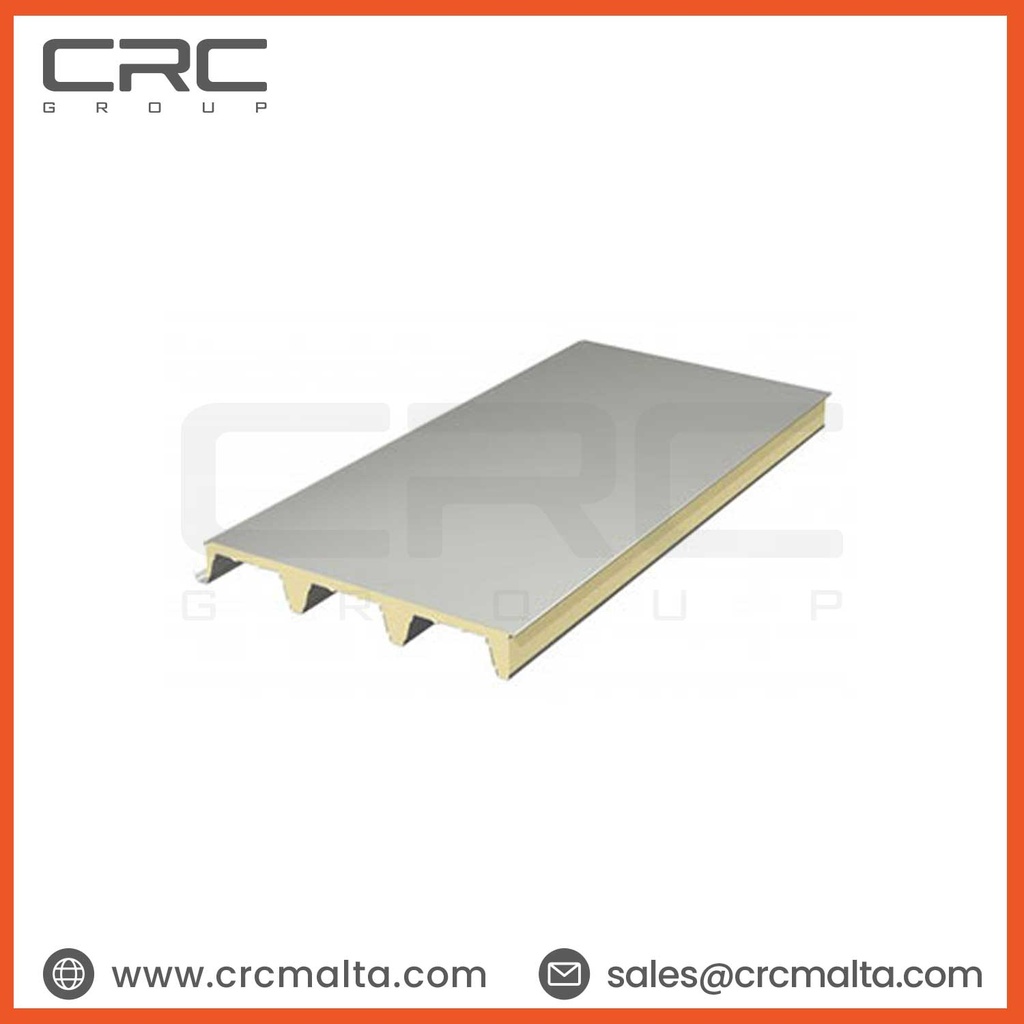

CRC MEGA 106 Flat Roof Panels
Self-supporting roof panel with polyurethane foam insulation, intended for flat or low-slope industrial and commercial roofs.
4 Greek, Greek height 106 mm, Greek pitch 333 mm
Doped outer side: support in slatted steel with glued synthetic membrane in pvc or polyolefin
Raw internal side: steel support
Useful width: 1,000 mm
Thicknesses (mm): 50-60-80-100-120-150
Self-supporting roof panel with polyurethane foam insulation, intended for flat or low-slope industrial and commercial roofs.
4 Greek, Greek height 106 mm, Greek pitch 333 mm
Doped outer side: support in slatted steel with glued synthetic membrane in pvc or polyolefin
Raw internal side: steel support
Useful width: 1,000 mm
Thicknesses (mm): 50-60-80-100-120-150
MEGA 106 FLAGON panel for self-supporting roofing with polyurethane foam insulation, intended for flat or low-slope industrial and commercial roofs. The double sheet panel has, on the slatted flat side, a synthetic membrane in pvc or glued polyolefin. It is ’ sufficient on site to carry out hot welding to obtain a waterproof cover with excellent mechanical characteristics and thermal insulation. Welding must be carried out by specialized personnel.
